WMR Series-Manual Rewind

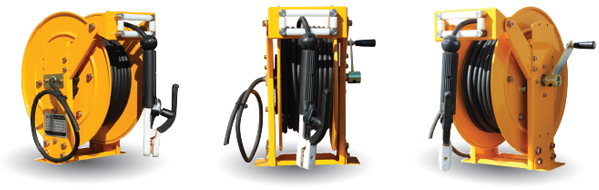

| ARC Welding Cable Reel

HOME > NEW PRODUCTS > Welding Reel (WMR Series)
Welding Reel | WMR-Series
ũԺ
Specification
Cable specifications Voltage Max Ampere Rewind Application
Square Cable Material core Length(MR)
25~50 WCT 1 10MR~50MR
33feet~164feet		 220V 600A Manual Floor,Wall,Ceiling

Design & Structure

  • Reels are all steel construction and compact design
  • All bolted assembly without welding
  • Dual frame ,guide plate & ball bearing support
  • Special heat-treatment non-corrosive & non-sparking ratchet.
  • 4-way guide roller assembly. Roller position must be specified
  • 400amp rated slip ring
  • For use with single conductor electrode cable or grounding lead
  • 400amp rated slip ring.
  • All materials are carbon steel as standard (Stainless, Aluminum and other materials are available when you request)
  • Other specifications are available.

Painting : Powder Coat.

ARC Welding Cable Reel | WMR-Series
ũԺ
Specification

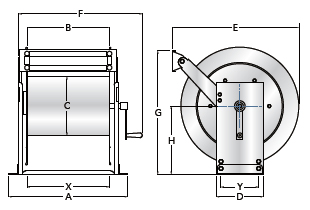

MODEL NO. CABLE CAPACITY REEL DIMENSION
WireSize Number of Conduct Length A B C D E F G H X Y
sq core meter mm mm mm mm mm mm mm mm mm mm
feet inch inch inch inch inch inch inch inch inch inch
WMR25-3 25 1 20 260 120 250 110 350 240 375 200 230 70
66 10.23 4.72 9.84 4.33 13.78 9.44 14.76 7.87 9.06 2.76
WMR25-5 25 1 30 290 150 250 110 350 240 375 200 260 70
98 11.41 5.9 9.84 4.33 13.78 9.44 14.76 7.87 10.24 2.76
WMR25-7 25 1 40 260 120 250 110 380 240 405 215 230 70
131 10.23 4.72 9.84 4.33 13.78 9.44 15.94 8.46 9.06 2.76
WMR25-9 25 1 50 290 150 250 110 380 240 405 215 260 70
164 11.41 5.9 9.84 4.33 13.78 9.44 15.94 8.46 10.24 2.76
WMR35-3 35 1 20 260 120 250 110 350 240 375 200 230 70
66 10.23 4.72 9.84 4.33 13.78 9.44 14.76 7.87 9.06 2.76
WMR35-5 35 1 30 260 120 250 110 380 240 405 215 230 70
98 10.23 4.72 9.84 4.33 13.78 9.44 15.94 8.46 9.06 2.76
WMR35-7 35 1 40 290 150 250 110 380 240 405 215 260 70
131 11.41 5.9 9.84 4.33 13.78 9.44 15.94 8.46 10.24 2.76
WMR35-9 35 1 50 260 120 250 150 450 250 480 255 230 110
164 10.23 4.72 9.84 5.9 17.71 9.44 18.9 10.03 9.06 4.33
WCR50-3 50 1 20 260 120 250 110 380 240 405 215 230 70
66 10.23 4.72 9.84 4.33 13.78 9.44 15.94 8.46 9.06 2.76
WCR50-5 50 1 30 260 120 250 110 380 240 405 215 230 70
98 10.23 4.72 9.84 4.33 13.78 9.44 15.94 8.46 9.06 2.76
WCR50-7 50 1 40 260 120 250 150 450 250 480 255 230 110
131 10.23 4.72 9.84 5.9 17.71 9.44 18.9 10.03 9.06 4.33
WCR50-9 50 1 50 290 150 250 150 450 250 480 255 260 110
164 11.41 5.9 9.84 5.9 17.71 9.44 18.9 10.03 9.06 4.33
