Power Rewind (Series 3000) | Hose Reel

HOME > PRODUCTS > Power Rewind (Series 3000)
Hose Reel | Power Rewind
크게보기

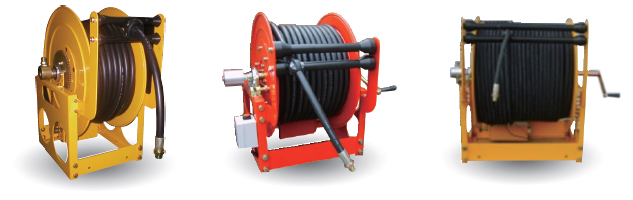

Uses : Fuel dispensing,Fire protection,Water supply,Chemical transfer etc.

Specification

Specification
Available Hose specifications Max Pressure Max Temperature Rewind Type Installation
Size(Inch) Hose Material Length(MR)
3/8 inch~ 2 inch Rubber(1W/B) 50MR~200MR 2900psi/200bar 212℉ (100℃) Manual & Power Motor Floor
160ft~650ft

Design & Structure

  • Heavy duty steel construction and compact design is suitable for long lengths of hose in power rewind.
  • If it is power rewind, Motor is installed outside of the Reel.
  • Power rewind reels are not supplied with switch but can be ordered separately.
  • Chain and sprocket drive powered by electric, hydraulic or compressed air motor.
  • Direct crank rewind is permanently attached(Direct crank rewind is removable when you need.)
  • Roller guides are option(Specify roller position when ordering.)
  • Brake System:cam-lock drag brake or spring actuated pin lock(Supplied with spring actuated pin lock as standard)
  • Full flow shaft and swivel.
  • Standard inlet 90° balanced pressure swivel joint(NBR Packing)
  • Inlet & Outlet connection threads are female NPT (Other threads are available when you request)
  • All materials are carbon steel as standard (Stainless, Aluminum and other materials are available when you request)
  • Type of Bevel Gear crank rewind is options(Pinion brake as standard)
  • Option:Automatic guide,Speed controler,Clutch is availabel.
  • Series 3000 reels are supplied without hose. Hose assemblies will be quoted according to your request.
  • Other specifications are available

Painting : Powder Coat.

Hose Reel | Power Rewind
크게보기
Specification

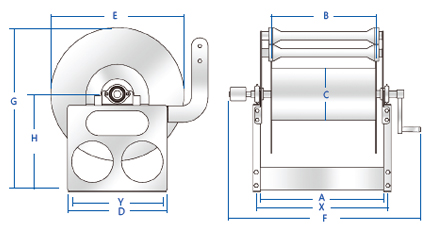

MODEL NO. HOSE CAPACITY REEL DIMENSIONS
I.D O.D LEN GTH A B C D E F G H X Y
mm inch mm inch meter
feet		 mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch
S309-9 9.5
3/8		 17.5
0.6		 50
165		 340
13.4		 180
7.1		 200
7.9		 390
15.4		 450
17.7		 645
25.4		 570
22.4		 345
13.8		 300
11.8		 290
11.4
S309-19 9.5
3/8		 17.5
0.6		 100
300		 510
20.1		 350
13.8		 200
7.9		 390
15.4		 450
17.7		 815
32.1		 570
22.4		 345
13.8		 470
18.5		 290
11.4
S309-29 9.5
3/8		 17.5
0.6		 150
500		 660
26.0		 500
19.7		 200
7.9		 390
15.4		 450
17.7		 965
38.0		 570
22.4		 345
13.8		 620
24.4		 290
11.4
S309-39 9.5
3/8		 17.5
0.6		 200
650		 660
26.0		 500
19.7		 200
7.9		 490
19.3		 550
17.7		 965
38.0		 670
26.4		 395
15.6		 620
24.4		 390
13.4
S3013-9 12.7
1/2		 20.6
2.8		 50
165		 400
15.7		 240
9.4		 250
9.8		 440
17.3		 500
19.7		 705
27.8		 620
24.4		 370
14.6		 360
14.2		 340
13.4
S3013-19 12.7
1/2		 20.6
2.8		 100
300		 400
15.7		 240
9.4		 250
9.8		 540
21.3		 600
23.6		 740
29.1		 720
28.3		 420
16.5		 360
14.2		 440
17.3
S3013-29 12.7
1/2		 20.6
2.8		 150
500		 460
18.1		 300
11.8		 250
9.8		 590
23.2		 650
25.6		 800
31.5		 770
30.3		 445
17.5		 420
16.5		 490
19.3
S3013-39 12.7
1/2		 20.6
2.8		 200
650		 560
22.0		 400
15.7		 250
9.8		 590
23.2		 650
25.6		 900
35.4		 770
30.3		 445
17.5		 520
20.5		 490
19.3
S3019-9 19
3/4		 27.8
1.1		 50
165		 400
15.7		 240
9.4		 250
9.8		 540
21.3		 600
23.6		 760
29.9		 720
28.3		 420
16.5		 360
14.2		 440
17.3
S3019-19 19
3/4		 27.8
1.1		 100
300		 560
22.0		 400
15.7		 250
9.8		 590
23.2		 650
25.6		 920
36.2		 770
30.3		 445
17.5		 520
20.5		 490
19.3
S3019-29 19
3/4		 27.8
1.1		 150
500		 660
26.0		 500
19.7		 250
9.8		 640
25.2		 700
27.6		 1020
40.2		 820
32.3		 470
18.5		 620
24.4		 540
21.3
S3025-9 25
1		 35.6
1.4		 50
165		 460
18.1		 300
11.8		 250
9.8		 590
23.2		 650
25.6		 840
33.1		 770
30.3		 445
17.5		 420
16.5		 490
19.3
S3025-19 25
1		 35.6
1.4		 100
300		 660
26.0		 500
19.7		 250
9.8		 640
25.2		 700
27.6		 1040
40.9		 820
32.3		 470
18.5		 620
24.4		 540
21.3
S3025-29 25
1		 35.6
1.4		 150
500		 660
26.0		 500
19.7		 250
9.8		 740
29.1		 800
31.5		 1040
40.9		 920
36.2		 520
20.5		 620
24.4		 640
25.2
S3032-3 32
1-1/4		 43.9
1.7		 20
70		 460
18.1		 300
11.8		 300
11.8		 590
23.2		 650
25.6		 860
33.9		 770
30.3		 445
17.5		 420
16.5		 490
19.3
S3032-5 32
1-1/4		 43.9
1.7		 30
100		 560
22.0		 400
15.7		 300
11.8		 590
23.2		 650
25.6		 960
37.8		 770
30.3		 445
17.5		 520
20.5		 490
19.3
S3032-9 32
1-1/4		 43.9
1.7		 50
165		 560
22.0		 400
15.7		 300
11.8		 690
27.2		 750
29.5		 960
37.8		 870
34.3		 495
19.5		 520
20.5		 590
23.2
S3040-3 38
1-1/2		 50.8
2.0		 20
70		 440
17.3		 280
11.0		 300
11.8		 640
25.2		 700
27.6		 850
33.5		 820
32.3		 470
18.5		 400
15.7		 540
21.3
S3040-5 38
1-1/2		 50.8
2.0		 30
100		 560
22.0		 400
15.7		 300
11.8		 640
25.2		 700
27.6		 970
38.2		 820
32.3		 470
18.5		 520
20.5		 540
21.3
S3040-9 38
1-1/2		 50.8
2.0		 50
165		 610
24.0		 450
17.7		 300
11.8		 740
29.1		 800
31.5		 1020
40.2		 920
36.2		 520
20.5		 570
22.4		 640
25.2
S3050-3 50
2		 64.6
2.5		 20
70		 560
22.0		 400
15.7		 400
15.7		 690
27.2		 750
29.5		 970
38.2		 870
34.3		 495
19.5		 520
20.5		 590
23.2
S3050-5 50
2		 64.6
2.5		 30
100		 660
26.0		 500
27.6		 400
15.7		 740
29.1		 800
31.5		 1070
42.1		 920
36.2		 520
20.5		 620
24.4		 640
25.2
S3050-7 50
2		 64.6
2.5		 40
130		 660
26.0		 900
35.4		 400
15.7		 790
31.1		 850
33.5		 1070
42.1		 970
38.2		 545
21.5		 620
24.4		 690
27.2

※The specifications are subject to be changed without previous notice for improvement.
