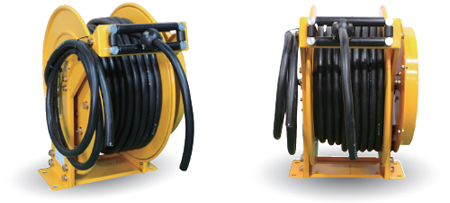

Spring Rewind (CT1-Series) | Cable Reel

HOME > PRODUCTS > Spring Rewind (CT1-Series)
Cable Reel | Spring Rewind
크게보기

Specification

Specification
Cable specifications Allowable Current Rewind Installation
Square Cable Material Core Length(MR)
2.5 ~ 4.0 VCTF 3 ~ 4 10MR~50MR 30A Spring Floor, Wall
30ft~165ft

Design & Structure

  • Reels are all steel construction and compact design
  • Dual frame ,guide plate & ball bearing support.
  • Special heat-treatment spring & non-corrosive ratchet.
  • 3~4 conductor 30 amp / 600 volt rated slip ring.
  • Brushes are copper graphite with copper alloy rings.
  • 4-way roller assembly.
  • All materials are carbon steel as standard(Stainless,Aluminum and other materials are available whe n you requested)
  • CT1 SERIES reels are furnished standard with VCT Cable
  • Other specifications are available.

Painting : Powder Coat.

CT1 SERIES reels are furnished standard with VCT Cable

Other specifications are available.

APPLICATION

  • Power Tools
  • Bench Mount
  • Workshops
  • Light Source
  • Manufacturing Plants
  • Automotive & Fleet Service Centers
  • General Industrial Facilities
  • Service / Mechanic / Utility Vehicles
Cable Reel | Spring Rewind
크게보기
Specification
MODEL NO. CABLE CAPACITY REEL DIMENSIONS
Wire
Size		 Number of
Conduct		 LEN GTH A B C D E F G H X Y
sq core meter
feet		 mm
inch		 mm
inch		 mm
inch		 mm
inch		 mm
inch		 mm
inch		 mm
inch		 mm
inch		 mm
inch		 mm
inch
CT1/13-1 1.5 3 10
30		 260
10.2		 120
4.7		 150
5.9		 110
4.3		 250
9.8		 240
9.4		 280
11		 155
6.1		 230
9.1		 70
2.8
CT1/13-2 1.5 3 15
50		 260
10.2		 120
4.7		 150
5.9		 110
4.3		 300
11.8		 240
9.4		 330
13		 180
7.1		 230
9.1		 70
2.8
CT1/13-3 1.5 3 20
70		 260
10.2		 120
4.7		 150
5.9		 110
4.3		 300
11.8		 240
9.4		 330
13		 180
7.1		 230
9.1		 70
2.8
CT1/13-4 1.5 3 25
85		 260
10.2		 120
4.7		 250
9.8		 110
4.3		 350
13.8		 240
9.4		 380
15		 205
8.1		 230
9.1		 70
2.8
CT1/13-5 1.5 3 30
100		 260
10.2		 120
4.7		 280
11		 110
4.3		 380
15		 240
9.4		 410
16.1		 220
8.7		 230
9.1		 70
2.8
CT1/13-6 1.5 3 35
115		 260
10.2		 120
4.7		 280
11		 110
4.3		 380
15		 240
9.4		 410
16.1		 220
8.7		 230
9.1		 70
2.8
CT1/13-7 1.5 3 40
130		 260
10.2		 120
4.7		 300
11.8		 150
5.9		 450
17.7		 240
9.4		 490
19.3		 265
10.4		 230
9.1		 110
4.3
CT1/13-8 1.5 3 45
150		 260
10.2		 120
4.7		 300
11.8		 150
5.9		 450
17.7		 240
9.4		 490
19.3		 265
10.4		 230
9.1		 110
4.3
CT1/13-9 1.5 3 50
165		 260
10.2		 120
4.7		 300
11.8		 150
5.9		 450
17.7		 240
9.4		 490
19.3		 265
10.4		 230
9.1		 110
4.3
CT1/23-1 2.5 3 10
30		 260
10.2		 120
4.7		 150
5.9		 110
4.3		 250
9.8		 240
9.4		 280
11		 155
6.1		 230
9.1		 70
2.8
CT1/23-2 2.5 3 15
50		 260
10.2		 120
4.7		 150
5.9		 110
4.3		 300
11.8		 240
9.4		 330
13		 180
7.1		 230
9.1		 70
2.8
CT1/23-3 2.5 3 20
70		 260
10.2		 120
4.7		 150
5.9		 110
4.3		 300
11.8		 240
9.4		 330
13		 180
7.1		 230
9.1		 70
2.8
CT1/23-4 2.5 3 25
85		 260
10.2		 120
4.7		 250
9.8		 110
4.3		 350
13.8		 240
9.4		 380
15		 205
8.1		 230
9.1		 70
2.8
CT1/23-5 2.5 3 30
100		 260
10.2		 120
4.7		 280
11		 110
4.3		 380
15		 240
9.4		 410
16.1		 220
8.7		 230
9.1		 70
2.8
CT1/23-6 2.5 3 35
115		 260
10.2		 120
4.7		 280
11		 110
4.3		 380
15		 240
9.4		 410
16.1		 220
8.7		 230
9.1		 70
2.8
CT1/23-7 2.5 3 40
130		 260
10.2		 120
4.7		 300
11.8		 150
5.9		 450
17.7		 240
9.4		 490
19.3		 265
10.4		 230
9.1		 110
4.3
CT1/23-8 2.5 3 45
150		 260
10.2		 120
4.7		 300
11.8		 150
5.9		 450
17.7		 240
9.4		 490
19.3		 265
10.4		 230
9.1		 110
4.3
CT1/23-9 2.5 3 50
165		 260
10.2		 120
4.7		 300
11.8		 150
5.9		 450
17.7		 240
9.4		 490
19.3		 265
10.4		 230
9.1		 110
4.3
CT1/14-1 1.5 4 10
30		 260
10.2		 120
4.7		 150
5.9		 110
4.3		 300
11.8		 240
9.4		 330
13		 180
7.1		 230
9.1		 70
2.8
CT1/14-2 1.5 4 15
50		 260
10.2		 120
4.7		 150
5.9		 110
4.3		 300
11.8		 240
9.4		 330
13		 180
7.1		 230
9.1		 70
2.8
CT1/14-3 1.5 4 20
70		 260
10.2		 120
4.7		 150
5.9		 110
4.3		 350
13.8		 240
9.4		 380
15		 205
8.1		 230
9.1		 70
2.8
CT1/14-4 1.5 4 25
85		 260
10.2		 120
4.7		 250
9.8		 110
4.3		 380
15		 240
9.4		 410
16.1		 220
8.7		 230
9.1		 70
2.8
CT1/14-5 1.5 4 30
100		 260
10.2		 120
4.7		 280
11		 110
4.3		 380
15		 240
9.4		 410
16.1		 220
8.7		 230
9.1		 70
2.8
CT1/14-6 1.5 4 35
115		 260
10.2		 120
4.7		 280
11		 110
4.3		 380
15		 240
9.4		 410
16.1		 220
8.7		 230
9.1		 70
2.8
CT1/14-7 1.5 4 40
130		 260
10.2		 120
4.7		 300
11.8		 150
5.9		 450
17.7		 240
9.4		 490
19.3		 265
10.4		 230
9.1		 110
4.3
CT1/14-8 1.5 4 45
150		 260
10.2		 120
4.7		 300
11.8		 150
5.9		 450
17.7		 240
9.4		 490
19.3		 265
10.4		 230
9.1		 110
4.3
CT1/14-9 1.5 4 50
165		 260
10.2		 120
4.7		 300
11.8		 150
5.9		 450
17.7		 240
9.4		 490
19.3		 265
10.4		 230
9.1		 110
4.3
CT1/24-1 2.5 4 10
30		 260
10.2		 120
4.7		 150
5.9		 110
4.3		 300
11.8		 240
9.4		 330
13		 180
7.1		 230
9.1		 70
2.8
CT1/24-2 2.5 4 15
50		 260
10.2		 120
4.7		 150
5.9		 110
4.3		 300
11.8		 240
9.4		 330
13		 180
7.1		 230
9.1		 70
2.8
CT1/24-3 2.5 4 20
70		 260
10.2		 120
4.7		 150
5.9		 110
4.3		 350
13.8		 240
9.4		 380
15		 205
8.1		 230
9.1		 70
2.8
CT1/24-4 2.5 4 25
85		 260
10.2		 120
4.7		 250
9.8		 110
4.3		 380
15		 240
9.4		 410
16.1		 220
8.7		 230
9.1		 70
2.8
CT1/24-5 2.5 4 30
100		 260
10.2		 120
4.7		 280
11		 110
4.3		 380
15		 240
9.4		 410
16.1		 220
8.7		 230
9.1		 70
2.8
CT1/24-6 2.5 4 35
115		 260
10.2		 120
4.7		 280
11		 110
4.3		 380
15		 240
9.4		 410
16.1		 220
8.7		 230
9.1		 70
2.8
CT1/24-7 2.5 4 40
130		 260
10.2		 120
4.7		 300
11.8		 150
5.9		 450
17.7		 240
9.4		 490
19.3		 265
10.4		 230
9.1		 110
4.3
CT1/24-8 2.5 4 45
150		 260
10.2		 120
4.7		 300
11.8		 150
5.9		 450
17.7		 240
9.4		 490
19.3		 265
10.4		 230
9.1		 110
4.3
CT1/24-9 2.5 4 50
165		 260
10.2		 120
4.7		 300
11.8		 150
5.9		 450
17.7		 240
9.4		 490
19.3		 265
10.4		 230
9.1		 110
4.3
CT1/43-1 4 3 10
30		 260
10.2		 120
4.7		 200
7.9		 110
4.3		 300
11.8		 240
9.4		 330
13		 180
7.1		 230
9.1		 70
2.8
CT1/43-2 4 3 15
50		 260
10.2		 120
4.7		 200
7.9		 110
4.3		 300
11.8		 240
9.4		 330
13		 180
7.1		 230
9.1		 70
2.8
CT1/43-3 4 3 20
70		 260
10.2		 120
4.7		 200
7.9		 110
4.3		 380
15		 240
9.4		 410
16.1		 220
8.7		 230
9.1		 70
2.8
CT1/43-4 4 3 25
85		 260
10.2		 120
4.7		 250
9.8		 110
4.3		 380
15		 240
9.4		 410
16.1		 220
8.7		 230
9.1		 70
2.8
CT1/43-5 4 3 30
100		 260
10.2		 120
4.7		 300
11.8		 150
5.9		 450
17.7		 240
9.4		 490
19.3		 265
10.4		 230
9.1		 110
4.3
CT1/43-6 4 3 35
115		 270
10.6		 120
4.7		 300
11.8		 150
5.9		 450
17.7		 250
9.8		 490
19.3		 265
10.4		 230
9.1		 110
4.3
CT1/43-7 4 3 40
130		 300
11.8		 150
5.9		 300
11.8		 150
5.9		 17.7
17.7		 280
11		 490
19.3		 265
10.4		 260
10.2		 110
4.3
CT1/43-8 4 3 45
150		 300
11.8		 150
5.9		 300
11.8		 150
5.9		 450
17.7		 280
11		 490
19.3		 265
10.4		 260
10.2		 110
4.3
CT1/43-9 4 3 50
165		 300
11.8		 180
7.1		 350
13.8		 150
5.9		 500
19.7		 310
12.2		 540
21.3		 290
11.4		 290
11.4		 110
4.3
CT1/44-1 4 4 10
30		 260
10.2		 120
4.7		 200
7.9		 110
4.3		 300
11.8		 240
9.4		 330
13		 180
7.1		 230
9.1		 70
2.8
CT1/44-2 4 4 15
50		 260
10.2		 120
4.7		 200
7.9		 110
4.3		 350
13.8		 240
9.4		 380
15		 205
8.1		 230
9.1		 70
2.8
CT1/44-3 4 4 20
70		 260
10.2		 120
4.7		 200
7.9		 110
4.3		 380
15		 240
9.4		 410
16.1		 220
8.7		 230
9.1		 70
2.8
CT1/44-4 4 4 25
85		 260
10.2		 120
4.7		 250
9.8		 110
4.3		 380
15		 240
9.4		 410
16.1		 220
8.7		 230
9.1		 70
2.8
CT1/44-5 4 4 30
100		 260
10.2		 120
4.7		 300
11.8		 150
5.9		 450
17.7		 240
9.4		 490
19.3		 265
10.4		 230
9.1		 110
4.3
CT1/44-6 4 4 35
115		 270
10.6		 120
4.7		 300
11.8		 150
5.9		 450
17.7		 250
9.8		 490
19.3		 265
10.4		 230
9.1		 110
4.3
CT1/44-7 4 4 40
130		 300
11.8		 150
5.9		 300
11.8		 150
5.9		 450
17.7		 280
11		 490
19.3		 265
10.4		 260
10.2		 110
4.3
CT1/44-8 4 4 45
150		 300
11.8		 150
5.9		 300
11.8		 150
5.9		 450
17.7		 280
11		 490
19.3		 265
10.4		 260
10.2		 110
4.3
CT1/44-9 4 4 50
165		 300
11.8		 180
7.1		 350
13.8		 150
5.9		 500
19.7		 310
12.2		 540
21.3		 290
11.4		 290
11.4		 110
4.3

※The specifications are subject to change without notice for improvement.
