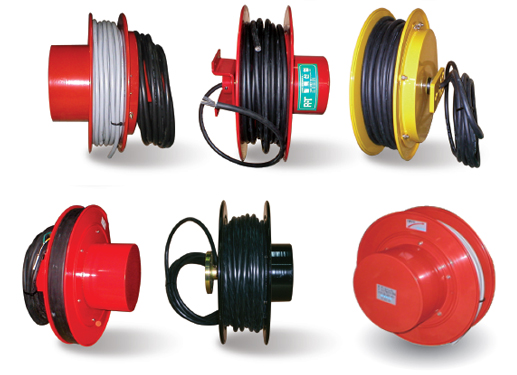

Self Retracting Cable Reels
(CWR Series) | Reel for Crane

HOME > PRODUCTS > Reel for Crane (CWR Series)

Heavy duty steel construction and without frame.
Special heat-treatment spring & without ratchet(Constant tension)
3~5 conductor 30~50 amp/600 volt rated slip ring.
Brushes are copper graphite with copper alloy rings.
All materials are carbon steel as standard(Stainless,Aluminum and other materials are available when you requested)
Crane cable reels are furnished standard with PNCT Cable
Other specifications are available

Specification

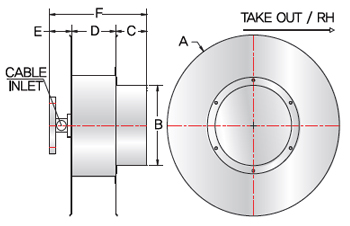

	CABLE TYPE	A	B	C	D	E	F	CABLE TYPE	CABLE LENGTH
1	CWR2320P-X	Φ390	200	90	115	60	265	PNCTx2.5sqx3c	20M
2	CWR2330P-X	Φ450						PNCTx2.5sqx3c	30M
3	CWR2340P-X	Φ500						PNCTx2.5sqx3c	40M
4	CWR2350P-X	Φ550						PNCTx2.5sqx3c	50M
5	CWR2420P-X	Φ390	200	90	115	60	265	PNCTx2.5sqx4c	20M
6	CWR2430P-X	Φ450						PNCTx2.5sqx4c	30M
7	CWR2440P-X	Φ550						PNCTx2.5sqx4c	40M
8	CWR2450P-X	Φ550						PNCTx2.5sqx4c	50M
9	CWR2520P-X	Φ390	200	110	130	60	300	PNCTx2.5sqx5c	20M
10	CWR2530P-X	Φ450						PNCTx2.5sqx5c	30M
11	CWR2540P-X	Φ500						PNCTx2.5sqx5c	40M
12	CWR2550P-X	Φ550						PNCTx2.5sqx5c	50M
13	CWR4320P-X	Φ390	200	90	115	60	265	PNCTx4.0sqx3c	20M
14	CWR4330P-X	Φ450						PNCTx4.0sqx3c	30M
15	CWR4340P-X	Φ550						PNCTx4.0sqx3c	40M
16	CWR4350P-X	Φ550						PNCTx4.0sqx3c	50M
17	CWR4420P-X	Φ450	200	90	115	60	265	PNCTx4.0sqx4c	20M
18	CWR4430P-X	Φ500						PNCTx4.0sqx4c	30M
19	CWR4440P-X	Φ550						PNCTx4.0sqx4c	40M
20	CWR4450P-X	Φ550						PNCTx4.0sqx4c	50M
21	CWR4520P-X	Φ450	200	110	130	60	300	PNCTx4.0sqx5c	20M
22	CWR4530P-X	Φ500						PNCTx4.0sqx5c	30M
23	CWR4540P-X	Φ550						PNCTx4.0sqx5c	40M
24	CWR4550P-X	Φ550						PNCTx4.0sqx5c	50M
