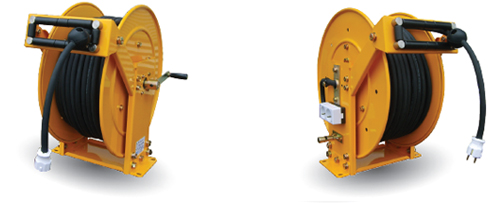

Cable Reel | Manual Rewind
크게보기

Specification

Specification
Cable specifications Allowable Current Rewind Installation
Square Cable Material Core Length(MR)
2.5 ~ 4.0 VCTF 3 ~ 4 20MR~100MR 15~25A Manual Floor, Wall
60ft~300ft

Design & Structure

  • Lightweight steel construction, compact design and versatile usage.
  • HT Series designed for mobile and portable
  • Dual frame, guide plate & ball bearing support.
  • Permanent direct crank rewind .
  • Roller guides are option(Specify roller position when ordering.)
  • Brake System:cam-lock drag brake or spring actuated pin lock(Supplied with spring actuated pin lock as standard
  • 3~4 conductor 30 amp/600 volt rated slip ring.
  • Brushes are copper graphite with copper alloy rings
  • All materials are carbon steel as standard(Stainless, Aluminum and other materials are available upon request)
  • Other specifications are available.

Painting : Powder Coat.

APPLICATION

  • Power Tools
  • Bench Mount
  • Workshops
  • Light Source
  • Manufacturing Plants
  • Automotive & Fleet Service Centers
  • General Industrial Facilities
  • Service / Mechanic / Utility Vehicles
Cable Reel | Manual Rewind
크게보기
Specification
MODEL NO. CABLE CAPACITY REEL DIMENSIONS
WIRE SIZE NUMBER OF
CONDUCTS		 LENGTH A B C D E F G H X Y
SQ core meter feet mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch
CH1/13 -3 1.5 3 20
70		 220
8.7		 70
2.8		 150
5.9		 110
4.3		 300
11.8		 260
10.2		 325
12.8		 175
6.9		 180
7.1		 70
2.8
CH1/13 -5 1.5 3 30
100		 220
8.7		 70
2.8		 150
5.9		 110
4.3		 300
11.8		 260
10.2		 325
12.8		 175
6.9		 180
7.1		 70
2.8
CH1/13 -7 1.5 3 40
130		 270
10.6		 120
4.7		 200
7.9		 110
4.3		 380
15		 310
12.2		 405
15.9		 215
8.5		 230
9.1		 70
2.8
CH1/13 -9 1.5 3 50
165		 270
10.6		 120
4.7		 200
7.9		 110
4.3		 380
15		 310
12.2		 405
15.9		 215
8.5		 230
9.1		 70
2.8
CH1/14 -3 1.5 4 20
70		 220
8.7		 70
2.8		 150
5.9		 110
4.3		 300
11.8		 260
10.2		 325
12.8		 175
6.9		 180
7.1		 70
2.8
CH1/14 -5 1.5 4 30
100		 220
8.7		 70
2.8		 150
5.9		 110
4.3		 300
11.8		 260
10.2		 325
12.8		 175
6.9		 180
7.1		 70
2.8
CH1/14 -7 1.5 4 40
130		 270
10.6		 120
4.7		 150
5.9		 110
4.3		 380
15		 310
12.2		 405
15.9		 215
8.5		 230
9.1		 70
2.8
CH1/14 -9 1.5 4 50
165		 300
11.8		 150
5.9		 150
5.9		 110
4.3		 380
15		 340
13.4		 405
15.9		 215
8.5		 260
10.2		 70
2.8
CH1/23 -3 2.5 3 20
70		 220
8.7		 70
2.8		 150
5.9		 110
4.3		 300
11.8		 260
10.2		 325
12.8		 175
6.9		 180
7.1		 70
2.8
CH1/23 -5 2.5 3 30
100		 220
8.7		 70
2.8		 150
5.9		 110
4.3		 300
11.8		 260
10.2		 325
12.8		 175
6.9		 180
7.1		 70
2.8
CH1/23-7 2.5 3 40
130		 270
10.6		 120
4.7		 200
7.9		 110
4.3		 380
15		 310
12.2		 405
15.9		 215
8.5		 230
9.1		 70
2.8
CH1/23 -9 2.5 3 50
165		 270
10.6		 120
4.7		 200
7.9		 110
4.3		 380
15		 310
12.2		 405
15.9		 215
8.5		 230
9.1		 70
2.8
CH1/24 -3 2.5 4 20
70		 220
8.7		 70
2.8		 150
5.9		 110
4.3		 300
11.8		 260
10.2		 325
12.8		 175
6.9		 180
7.1		 70
2.8
CH1/24 -5 2.5 4 30
100		 220
8.7		 70
2.8		 150
5.9		 110
4.3		 300
11.8		 260
10.2		 325
12.8		 175
6.9		 180
7.1		 70
2.8
CH1/24 -7 2.5 4 40
130		 270
10.6		 120
4.7		 150
5.9		 110
4.3		 380
15		 310
12.2		 405
15.9		 215
8.5		 230
9.1		 70
2.8
CH1/24 -9 2.5 4 50
165		 300
11.8		 150
5.9		 150
5.9		 110
4.3		 380
15		 340
13.4		 405
15.9		 215
8.5		 260
10.2		 70
2.8
CH1/43 -3 4.0 3 20
70		 220
8.7		 70
2.8		 150
5.9		 110
4.3		 350
13.8		 260
10.2		 375
14.8		 200
7.9		 180
7.1		 70
2.8
CH1/43 -5 4.0 3 30
100		 220
8.7		 70
2.8		 150
5.9		 110
4.3		 380
15		 260
10.2		 405
15.9		 215
8.5		 180
7.1		 70
2.8
CH1/43 -7 4.0 3 40
130		 270
10.6		 120
4.7		 150
5.9		 110
4.3		 380
15		 310
12.2		 405
15.9		 215
8.5		 230
9.1		 70
2.8
CH1/43 -9 4.0 3 50
165		 300
11.8		 150
5.9		 150
5.9		 110
4.3		 380
15		 340
13.4		 405
15.9		 215
8.5		 260
10.2		 70
2.8
CH1/44 -3 4.0 4 20
70		 270
10.6		 120
4.7		 150
5.9		 110
4.3		 350
13.8		 310
12.2		 375
14.8		 200
7.9		 230
9.1		 70
2.8
CH1/44 -5 4.0 4 30
100		 270
10.6		 120
4.7		 150
5.9		 110
4.3		 380
15		 310
12.2		 405
15.9		 215
8.5		 230
9.1		 70
2.8
CH1/44 -7 4.0 4 40
130		 300
11.8		 150
5.9		 150
5.9		 110
4.3		 380
15		 340
13.4		 405
15.9		 215
8.5		 260
10.2		 70
2.8
CH1/44 -9 4.0 4 50
165		 270
10.6		 120
4.7		 150
5.9		 150
5.9		 450
17.7		 310
12.2		 480
18.9		 255
10		 230
9.1		 110
4.3

※The specifications are subject to be changed without previous notice for improvement.
