Manual & Power rewind Reel
(SR1000 Series) | Storage Reels

HOME > PRODUCTS > Storage Reels (SR1000 Series)

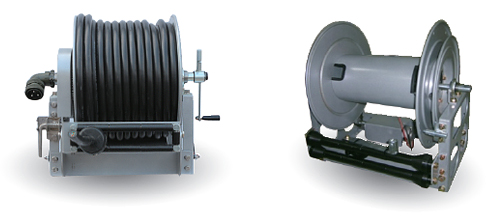

Storage Reels | Manual & Power rewind Reel
크게보기

Uses : Collapsible Hose, Cable, Rope, Wire, Chain.

Design & Structure

  • Reels have no swivel, no riser & no conductors.
  • Lightweight compact reels designed for long lengths of hose ni power rewind
  • If it is power rewind,Motor is installed outside of the Ree.
  • Power rewind reels are not supplied with switch but can be ordered separately
  • Chain and sprocket drive powered by electric, hydraulico, r compressed air motor.
  • Direct crank rewind is permanently attached (Direct crank rewind is removable when you need.)
  • Roller guides are option(Specify roller position when ordering.)
  • Brake System:cam-lock drag brake or spring actuated pin lock(Supplied with spring actuated pin lock as standard)
  • All materials are carbon steel as standard (Stainless,Aluminum and other materials are available upon request)
  • Bevel Geared Crank is optional (Direct Crank as standard)
  • Option: Automatic guide, Speed controller and Clutch are available.
  • Other specifications are available.

Painting : Powder Coat.

Storage Reels | Manual & Power rewind Reel
크게보기
Specification

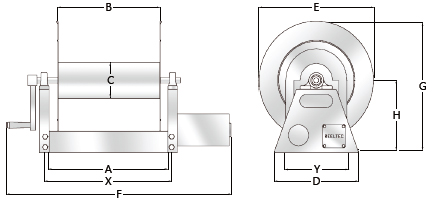

MODEL NO. HOSE CAPACITY REEL DIMENSIONS
I.D LEN GTH A B C D E F
(MANUAL)		 F
(POWER)		 G H X Y
mm inch meter feet mm
inch		 mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch
SR1/6-54 6
1/4"		 275
900		 310
12.2		 150
5.9		 150
5.9		 350
13.8		 380
15.0		 435
17.1		 635
25.0		 430
16.9		 240
9.4		 270
10.6		 300
11.8
SR1/6-72 6
1/4"		 365
1200		 340
13.4		 180
7.1		 150
5.9		 350
13.8		 380
15.0		 465
18.3		 665
26.2		 430
16.9		 240
9.4		 300
11.8		 300
11.8
SR1/9-29 9
3/8"		 150
500		 340
13.4		 180
7.1		 150
5.9		 350
13.8		 380
15.0		 465
18.3		 665
26.2		 430
16.9		 240
9.4		 300
11.8		 300
11.8
SR1/9-39 9
3/8"		 200
650		 400
15.7		 240
9.4		 150
5.9		 350
13.8		 380
15.0		 525
20.7		 725
28.5		 430
16.9		 240
9.4		 360
14.2		 300
11.8
SR1/9-54 9
3/8"		 275
900		 510
20.1		 350
13.8		 150
5.9		 350
13.8		 380
15.0		 635
25.0		 835
32.9		 430
16.9		 240
9.4		 470
18.5		 300
11.8
SR1/9-60 9
3/8"		 305
1000		 560
22.0		 400
15.7		 150
5.9		 350
13.8		 380
15.0		 685
27.0		 885
34.8		 430
16.9		 240
9.4		 520
20.5		 300
11.8
SR1/13-17 13
1/2"		 90
300		 400
15.7		 240
9.4		 150
5.9		 350
13.8		 380
15.0		 525
20.7		 725
28.5		 430
16.9		 240
9.4		 360
14.2		 300
11.8
SR1/13-29 13
1/2"		 150
500		 510
20.1		 350
13.8		 150
5.9		 350
13.8		 380
15.0		 635
25.0		 835
32.9		 430
16.9		 240
9.4		 470
18.5		 300
11.8
SR1/13-39 13
1/2"		 200
650		 610
24.0		 450
17.7		 150
5.9		 350
13.8		 380
15.0		 735
28.9		 935
36.8		 430
16.9		 240
9.4		 570
22.4		 300
11.8

※The specifications are subject to be changed without previous notice for improvement.
