Manual & Power rewind Reel
(SR2000 Series) | Storage Reels

HOME > PRODUCTS > Storage Reels (SR2000 Series)

Uses : Collapsible Hose, Cable, Rope, Wire, Chain.

Design & Structure

  • Reels have no swivel, no riser & no conductors.
  • Heavy duty steel construction and compact design are suitable for long lengths of hose in power rewind.
  • If it is power rewind, Motor is installed outside of the Reel.
  • Power rewind reels are not supplied with switch but can be ordered separately
  • Chain and sprocket drive powered by electric, hydraulico, r compressed air motor.
  • Direct crank rewind is permanently attached (Direct crank rewind is removable when you need.)
  • Roller guides are option(Specify roller position when ordering.)
  • Brake System:cam-lock drag brake or spring actuated pin lock(Supplied with spring actuated pin lock as standard)
  • All materials are carbon steel as standard (Stainless,Aluminum and other materials are available upon request)
  • Bevel Geared Crank is optional (Direct Crank as standard)
  • Option: Automatic guide, Speed controller and Clutch are available.
  • Other specifications are available

Painting : Powder Coat.

Storage Reels | Manual & Power rewind Reel
크게보기
Specification

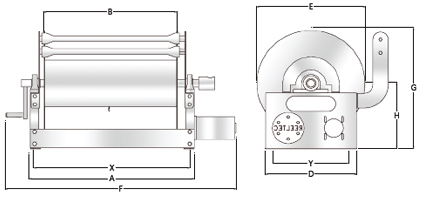

MODEL NO. HOSE CAPACITY REEL DIMENSIONS
I.D LEN GTH A B C D E F
(MANUAL)		 F
(POWER)		 G H X Y
mm inch meter feet mm
inch		 mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch
SR2/15-17 15
5/8"		 90
300		 440
17.3		 280
11		 250
9.8		 390
15.4		 450
17.7		 565
22.2		 765
30.1		 500
19.7		 275
10.8		 400
15.7		 290
11.4
SR2/15-29 15
5/8"		 150
500		 610
24		 450
17.7		 250
9.8		 390
15.4		 450
17.7		 735
28.9		 935
36.8		 500
19.7		 275
10.8		 570
22.4		 290
11.4
SR2/15-39 15
5/8"		 200
650		 610
24		 450
17.7		 250
9.8		 440
17.3		 500
19.7		 785
30.9		 985
38.8		 550
21.7		 300
11.8		 570
22.4		 340
13.4
SR2/19-17 19
3/4"		 90
300		 660
26		 500
19.7		 250
9.8		 420
16.5		 450
17.7		 785
30.9		 985
38.8		 500
19.7		 275
10.8		 620
24.4		 370
14.6
SR2/19-29 19
3/4"		 150
500		 660
26		 500
19.7		 250
9.8		 470
18.5		 500
19.7		 835
32.9		 1035
40.7		 550
21.7		 300
11.8		 620
24.4		 420
16.5
SR2/19-39 19
3/4"		 200
650		 660
26		 500
19.7		 250
9.8		 520
20.5		 550
21.7		 835
32.9		 1035
40.7		 600
23.6		 325
12.8		 620
24.4		 470
18.5
SR2/25-17 25
1"		 90
300		 710
28		 550
21.7		 250
9.8		 470
18.5		 500
19.7		 885
34.8		 1085
42.7		 550
21.7		 300
11.8		 670
26.4		 420
16.5
SR2/25-29 25
1"		 150
500		 710
28		 550
21.7		 250
9.8		 570
22.4		 600
23.6		 885
34.8		 1085
42.7		 650
25.6		 350
13.8		 670
26.4		 520
20.5
SR2/25-39 25
1"		 200
650		 860
33.9		 700
27.6		 250
9.8		 570
22.4		 600
23.6		 1035
40.7		 1235
48.6		 650
25.6		 350
13.8		 820
32.3		 520
20.5

※The specifications are subject to be changed without previous notice for improvement.
