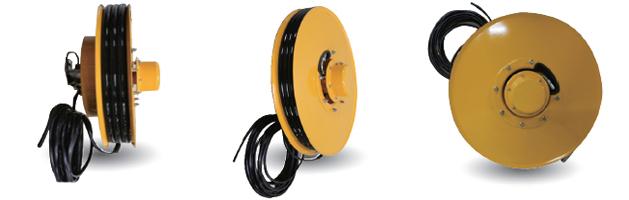

Multiple Hose Reel
(HC Series) | Reel for Crane

HOME > PRODUCTS > Multiple Hose Reel (HC Series)
Reel for Crane | Multiple Hose Reel
크게보기

Specification

  • Integral Type duplex with Hose Reel and Cable Reel
  • Working hydraulic pressure with electric power and signal cable simultaneity.
  • Create various effect with one Reel
  • Apply power spring for smooth working at high pressure.
  • The cable have penetrated into hose for save cable.
Reel for Crane | Multiple Hose Reel
크게보기
Specification
MODEL NO. A B C D E F Available
HOSE		 HOSE
LENGTH		 REELING
LENGTH		 WORKING
PRESSURE
(KG/cm²)
Available
CABLE 		 CABLE
LENGTH		 Current
AMPS(A)
HC3-94-D450-X 450Ø 60 Ø280 120 54 240 3/8" 8.5M 8M 160
1.5sq*4c 13.5M 　
HC3-94-D500-X 500Ø 60 Ø280 120 54 240 3/8" 10M 9.5M 160
1.5sq*4c 15M 　
HC3-94-D550-X 550Ø 60 Ø340 120 54 240 3/8" 13M 12M 160
1.5sq*4c 18M 　
HC3-94-D600-X 600Ø 60 Ø340 120 54 240 3/8" 15.5M 14.5M 160
1.5sq*4c 20.5M 　
HC3-94-D650-X 650Ø 60 Ø340 120 54 240 3/8" 19M 18M 160
1.5sq*4c 24M 　

※ The Specifications are subject to change without notice for improvement.
