Spring Rewind
(Stainless water hose ) | Hose Reel

HOME > PRODUCTS > Spring Rewind (Stainless water hose )

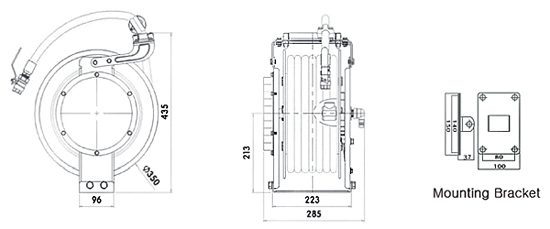

Design & Structure

  • Reels are all stainless steel construction with strong corrosion resistant.
  • Compact design with all bolted assembly without welding.
  • Dual frame, guide plate & ball bearing support.
  • Exclusive water reel for Food Company, facility of communal feeding.
  • Special heat-treatment spring & non-corrosive ratchet.
  • Wide usage with 120 degree swing.
  • Standard inlet 90º balanced pressure swivel joint(NBR Packing)
  • Inlet & Outlet connection threads are female NPT.
  • Apply easy-to-use Nozzle or Water gun (Option).
Hose Reel | Stainless water hose
크게보기

1. Non Toxic Hose Reel for Hot & Cold Water

Hose Reel | Stainless water hose
크게보기
Specification
Hose Material Max Pressure Working Temperature
PVC Synthetics 10Kgf/㎠ 70℃
MODEL NO. HOSE Spec Rewinding Length Shoot Type Installation
BR1310H Ø13*Ø23 10M Ball Valve Wall Ceiling
BR1315H 15M
NR1310H 10M Nozzle
NR1315H 15M
GR1310H 10M Power Gun
GR1315H 15M

2. Non-Toxic Hose Reel for High Temperature and Steam

Hose Reel | Stainless water hose
크게보기
Specification
Hose Material Max Pressure Working Temperature
EPDM Hose 20Kgf/㎠ - 30˚C ~ 120˚C
MODEL NO. HOSE Spec Rewinding Length Shoot Type Installation
S1310B Ø13*Ø23 10M Ball Valve Wall Ceiling
S1315B 15M
S1310N 10M Nozzle
S1315N 15M
S1310G 10M Power Gun
S1315G 15M

※ Tested rubber hose with non toxic drinking water by KCL (Korea Conformity Laboratories)

3. High Temperature Hose Reel

Hose Reel | Stainless water hose
크게보기
Specification
Hose Material Max Pressure Working Temperature
NBR Synthetics 20Kgf/㎠ 100˚C
MODEL NO. HOSE Spec Rewinding Length Shoot Type Installation
HR1310B Ø13*Ø23 10M Ball Valve Wall Ceiling
HR1315B 15M
HR1310N 10M Nozzle
HR1315N 15M
HR1310G 10M Power Gun
HR1315G 15M

Accessory

Hose Reel | Stainless water hose
크게보기

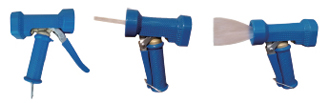

Power Water Gun

1. High durability by scientific design and No corrosion
    with brass material, Stainless and silicon.
2. Control to High Pressure Direct & Spray by lever.
Hose Reel | Stainless water hose
크게보기

Spray Nozzle

1. Convenient use with Screw Type.
2. Control to High Pressure Direct & Spray by turn right & left.
3. Apply rubber cover of high durability for handle.
