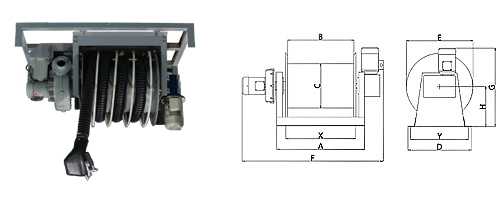

Exhaust Hose Reel - Motor Rewind Type

Hose Reel | Spring Rewind
크게보기
Specification
Hose Spec. Hose Material Rewind Length Max Temperature Install
3” ~ 4” Flexible high temperature hose 7.5MR/10MR 200ºC Wall, Ceiling

Specification

  • Exhale them into the atmosphere through the plumbing connected after inhaling exhaust gas with high temperature.
  • Excellent rewind apply strong electric motor.
  • Protect damage of hose by limit system.
  • Option : multipurpose muffler nozzle.
  • Use: Vehicle workshop, gas station, training center, laboratory.
Specification
MODEL. No HOSE CAPACITY REEL DIMENSIONS
I.D O.D LENGTH A B C D E F G H X Y
Ø Ø MR mm mm mm mm mm mm mm mm mm mm
EX307 75 95 7.5 720 600 300 484 600 840 660 360 590 440
EX310 75 95 10 870 750 300 484 600 1090 660 360 740 440
EX407 100 120 7.5 770 650 300 484 650 990 725 400 640 440
EX410 100 120 10 920 800 300 484 650 1140 725 400 790 440
EX307BW 75 95 7.5 720 600 300 484 600 1230 660 360 590 440
EX310BW 75 95 10 870 750 300 484 600 1480 660 360 740 440
EX407BW 100 120 7.5 770 650 300 484 650 1380 725 400 640 440
EX410BW 100 120 10 920 800 300 484 650 1530 725 400 790 440

* The specifications are subject to be changed without previous notice for improvement.

Exhaust Hose Reel- Spring Rewind Type


Specification
Hose Spec. Hose Material Rewind Length Max Temperature Install
3” ~ 4” Flexible high temperature hose 7.5MR/10MR 200ºC Wall, Ceiling

Specification

  • Exhale them into the atmosphere through the plumbing connected after inhaling exhaust gas with high temperature.
  • Apply excellent durable high strong spring.
  • Option : multipurpose muffler nozzle.
  • Use: Vehicle workshop, gas station, training center, laboratory.
Hose Reel | Spring Rewind
크게보기
Specification
MODEL. No HOSE CAPACITY REEL DIMENSIONS
I.D O.D LENGTH A B C D E F G H X Y
Ø Ø MR mm mm mm mm mm mm mm mm mm mm
EX307S 75 95 7.5 720 600 300 484 600 760 660 360 590 440
EX310S 75 95 10 870 750 300 484 600 910 660 360 740 440
EX407S 100 120 7.5 770 650 300 484 650 810 725 400 640 440
EX410S 100 120 10 920 800 300 484 650 960 725 400 790 440
EX307BWS 75 95 7.5 720 600 300 484 600 1150 660 360 590 440
EX310BWS 75 95 10 870 750 300 484 600 1300 660 360 740 440
EX407BWS 100 120 7.5 770 650 300 484 650 1200 725 400 640 440
EX410BWS 100 120 10 920 800 300 484 650 1350 725 400 790 440

* The specifications are subject to be changed without previous notice for improvement.
