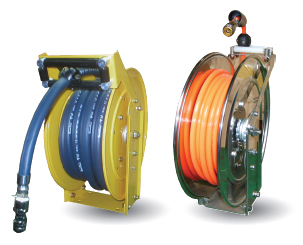

Hose Reel | Spring Rewind
크게보기

Uses : For Air

Design & Structure

  • Reels are all steel construction and compact design
  • All bolted assembly without weldings
  • Special heat-treatment spring & ratchet.
  • 4-way roller assembly.
  • Full flow shaft and swivel.
  • Standard inlet 90° balanced pressure swivel joint(NBR Packing)
  • All(Outlet & inlet) connection threads are female NPT(Other threads can be furnished when you request)
  • All materials are carbon steel as standard(Stainless, Aluminum and other materials are available when you request)
  • 'SN' SERIES reels are furnished standard with PVC HOSE.(Rubber hose is available when you requested.)
  • Other specifications are available.

Painting:powder coat.

Specification

Specification
Available Hose specifications Max Pressure Max Temperature Rewind Type Installation
Size(Inch) Hose Material Length(MR)
1/4inch~1/2inch PVC(1T/B) 10MR~30MR 300psi/20bar 50ºC Spring Floor, Wall, Ceiling
30ft~100ft
Hose Reel | Spring Rewind
크게보기
Specification
MODEL NO. HOSE CAPACITY REEL DIMENSIONS
I.D O.D LEN GTH A B C D E F G H X Y
mm
inch		 mm
inch		 meter
feet		 mm
inch		 mm
inch		 mm
inch		 mm
inch		 mm
inch		 mm
inch		 mm
inch		 mm
inch		 mm
inch		 mm
inch
SN6-1 6.5
1/4		 13
0.51		 10
30		 130
5.1		 70
2.8		 170
6.7		 110
4.3		 300
11.8 		145
5.7		 330
13.0		 180
7.1		 85
3.3		 70
2.8
SN6-2 6.5
1/4		 13
0.51		 15
50		 130
5.1		 70
2.8		 170
6.7		 110
4.3		 300
11.8		 145
5.7		 330
13.0		 180
7.1		 85
3.3		 70
2.8
SN6-3 6.5
1/4		 13
0.51		 20
70		 130
5.1		 70
2.8		 170
6.7		 110
4.3		 300
11.8		 145
5.7		 330
13.0		 180
7.1		 85
3.3		 70
2.8
SN9-1 9.5
3/8		 17
0.65		 10
30		 130
5.1		 70
2.8		 170
6.7		 110
4.3		 300
11.8		 145
5.7		 330
13.0		 180
7.1		 85
3.3		 70
2.8
SN9-2 9.5
3/8		 17
0.65		 15
50		 130
5.1		 70
2.8		 170
6.7		 110
4.3		 300
11.8		 145
5.7		 330
13.0		 180
7.1		 85
3.3		 70
2.8
SN9-3 9.5
3/8		 17
0.65		 20
70		 130
5.1		 70
2.8		 170
6.7		 110
4.3		 300
11.8		 145
5.7		 330
13.0		 180
7.1		 85
3.3		 70
2.8
SN13-1 12.7
1/2		 21
0.81		 10
30		 210
8.3		 70
2.8		 170
6.7		 110
4.3		 300
11.8		 230
9.1		 330
13.0		 180
7.1		 155
6.1		 70
2.8
SN13-2 12.7
1/2		 21
0.81		 15
50		 210
8.3		 70
2.8		 170
6.7		 110
4.3		 350
13.8		 230
9.1		 385
15.2		 210
8.3		 155
6.1		 70
2.8
SN13-3 12.7
1/2		 21
0.81		 20
70		 210
8.3		 70
2.8		 170
6.7		 110
4.3		 350
13.8		 230
9.1		 385
15.2		 210
8.3		 155
6.1		 70
2.8

※The specifications are subject to be changed without previous notice for improvement.
