Manual Rewind
(GHR-Series) | Static Grounding Reel

HOME > PRODUCTS > Static Grounding Reel (GHR-Series)

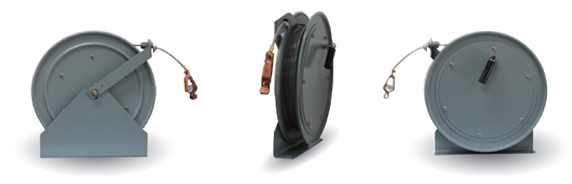

Static Grounding Reel | Manual Rewind
크게보기

Uses : For Refuelling equipment,Chemical plants,Bulking sites, Hazardous areas.Reducing the sparking and the potential for explosion.

Design & Structure

  • Lightweight steel construction , compact design and versatile usage.
  • Permanent direct crank rewind.
  • Brake System:cam-lock drag brake or spring actuated pin lock(Supplied with spring actuated pin lock as standard)
  • 100Amp Jaw type grounding clamp(Bronze) as standard.
  • All materials are carbon steel as standard(Stainless,Aluminum and other materials are available when you requested)

Cable wire

  • Yellow PVC covered stainless wire braided cable Ø 3mm
  • Clear PVC covered stainless wire braided cable Ø 5mm

Painting : Powder Coat.

Static Grounding Reel | Manual Rewind
크게보기
Specification
MODEL NO. WIRE CAPACITY REEL DIMENSIONS
O.D LEN GTH A B C D E F G H X Y
mm inch meter
feet		 mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch
GHR3-5 3
1/8		 30
100		 50
2.0		 24
0.9		 185
7.3		 250
9.8		 300
11.8		 125
4.9		 325
12.8		 175
6.9		 25
1.0		 200
7.9
GHR3-11 3
1/8		 60
200		 50
2.0		 24
0.9		 185
7.3		 250
9.8		 300
11.8		 125
4.9		 325
12.8		 175
6.9		 25
1.0		 200
7.9
GHR5-5 5
3/16		 30
100		 55
2.2		 45
1.8		 250
9.8		 330
13.0		 350
13.8		 150
5.9		 375
14.8		 200
7.9		 35
1.4		 290
11.4
GHR5-11 5
3/16		 60
200		 55
2.2		 45
1.8		 250
9.8		 330
13.0		 350
13.8		 150
5.9		 375
14.8		 200
7.9		 35
1.4		 290
11.4

※The specifications are subject to be changed without previous notice for improvement.
