Manual Rewind Type
(AV Series) | Storage Reels
HOME > PRODUCTS > Storage Reels (AV Series)
Structure
- AV Series are non-contacting cable reel for AUDIO & VIDEO
- There are 2 types, 'R' and 'W according to brake system.
- Produced with a lightweight square pipe so can be load overlap.
- Options: Moving Castor (2* Rotation, 2* Fixed)

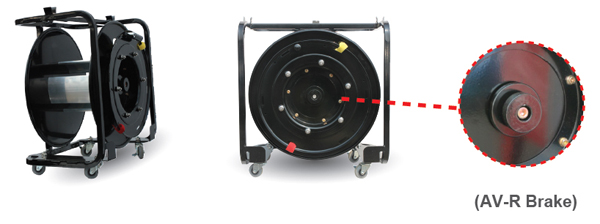

AV-R Series
- Non-contacting cable reel & Manual Rewind for AUDIO & VIDEO
- Convenient of moving & load Between products. (Fixed Holder)
- Options: Moving Castor (2* Rotation, 2* Fixed)
- Store INLET CABLE in side drum.
- Prevent tangle of cable by inertia when cable draw out. (Control friction force)
- Control rotation power of shaft with stop system.
- Simple fixed equipment of cable reel (Rotation Left & Right)
| Model No. | Reel Dimension (W×D×H)mm |
Rewind Length by Cable capacity | Rewind Type | |||
|---|---|---|---|---|---|---|
| O.D ø21 | O.D ø16 | O.D ø10 | O.D ø8 | |||
| AV45-R | 390×510×510 | 50MR | 100MR | 250MR | 440MR | Manual Rewind |
| AV38-R | 330×425×425 | 30MR | 50MR | 150MR | 220MR | Manual Rewind |
| AV30-R | 330×350×350 | 20MR | 30MR | 80MR | 120MR | Manual Rewind |
※ The Specifications are subject to change without notice for improvement.

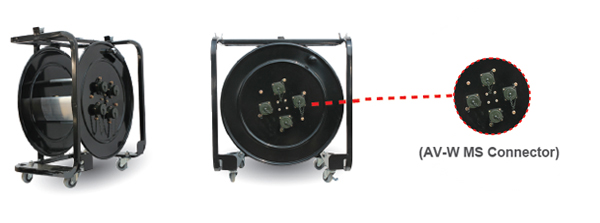

AV-W Series
- Non-contacting cable reel & Manual Rewind for AUDIO & VIDEO
- Convenient of moving & load Between products. (Fixed Holder)
- Options: Moving Castor (2* Rotation, 2* Fixed)
- Store INLET CABLE in side drum.
- Control rotation power of shaft with stop system.
- Simple fixed equipment of cable reel (Rotation Left & Right)
| Model No. | Reel Dimension (W×D×H)mm |
Rewind Length by Cable capacity | Rewind Type | |||
|---|---|---|---|---|---|---|
| O.D ø21 | O.D ø16 | O.D ø10 | O.D ø 8 | |||
| AV45-W | 390×510×510 | 50MR | 100MR | 250MR | 440MR | Manual Rewind |
| AV38-W | 330×425×425 | 30MR | 50MR | 150MR | 220MR | Manual Rewind |
| AV30-W | 330×350×350 | 20MR | 30MR | 80MR | 120MR | Manual Rewind |
※ The Specifications are subject to change without notice for improvement.
