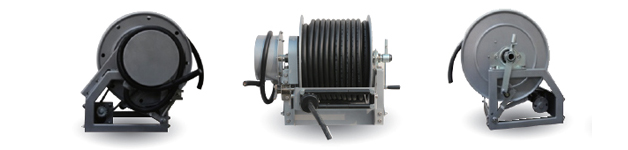

Cable Reel | Power Rewind
크게보기

Specification

Specification
Cable Size No. of Conduct Cable Material Cable Capacity Max Ampere Application
6.0sq~10.0sq 3~4 core VCTF 200MR 50A Floor,Wall,Ceiling

Design & Structure

  • Lightweight compact reels designed for long lengths of cable in power rewind.
  • If it is power rewind,Motor is installed outside of the Reel.
  • Power rewind reels are not supplied with switch but can be ordered separately
  • Chain and sprocket drive powered by electric, hydraulic, or compressed air motor.
  • Direct crank rewind is permanently attached (Direct crank rewind is removable when you need.)
  • Roller guides are option(Specify roller position when ordering.)
  • Brake System:cam-lock drag brake or spring actuated pin lock(Supplied with spring actuated pin lock as standard)
  • 3~4 conductor 30 amp/600 volt rated slip ring.
  • Brushes are copper graphite with copper alloy rings.
  • All materials are carbon steel as standard (Stainless, Aluminum and other materials are available upon request)
  • Bevel Geared Crank is optional (Direct Crank as standard)
  • Option: Automatic guide, Speed controller and Clutch are available.
  • Series CR1000 reels are supplied without Cable. Cable assemblies will be quoted according to your request.
  • Other specifications are available.

Painting : Powder Coat.

Cable Reel | Power Rewind
크게보기
Specification

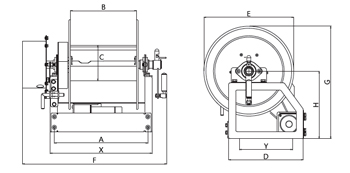

MODEL NO. CABLE REEL DIMENSION
Size Number
of Conduct		 Length A B C D E F
(MANUAL)		 F
(POWER)		 G H X Y
sq core meter mm mm mm mm mm mm mm mm mm mm mm
feet inch inch inch inch inch inch inch inch inch inch inch
CR1/23-9 2.5 3 50 310 150 150 350 380 435 635 430 240 270 300
165 12.2 5.9 5.9 13.8 15 17.1 25 16.9 9.4 10.6 11.8
CR1/23-19 2.5 3 100 460 300 150 350 380 585 785 430 240 420 300
330 18.1 11.8 5.9 13.8 15 23 30.9 16.9 9.4 16.5 11.8
CR1/23-29 2.5 3 150 610 450 150 350 380 735 935 430 240 570 300
500 24 17.7 5.9 13.8 15 28.9 36.8 8.7 9.4 22.4 11.8
CR1/24-9 2.5 4 50 340 180 150 350 380 465 665 430 240 300 300
165 13.4 7.1 5.9 13.8 15 18.3 26.2 16.9 9.4 11.8 11.8
CR1/24-19 2.5 4 100 510 350 150 350 380 635 835 430 240 470 300
330 20.1 13.8 5.9 13.8 15 25 32.9 16.9 9.4 18.5 11.8
CR1/24-29 2.5 4 150 660 500 150 350 380 785 985 430 240 620 300
500 26 19.7 5.9 13.8 15 30.9 38.8 16.9 9.4 24.4 11.8
CR1/43-9 4.0 3 50 370 210 150 350 380 495 695 430 240 330 300
165 14.6 8.3 5.9 13.8 15 19.5 27.4 16.9 9.4 13 11.8
CR1/43-19 4.0 3 100 510 350 150 350 380 635 835 430 240 470 300
330 20.1 13.8 5.9 13.8 15 25 32.9 16.9 9.4 18.5 11.8
CR1/43-29 4.0 3 150 660 500 150 350 380 785 985 430 240 620 300
500 26 19.7 5.9 13.8 15 30.9 38.8 16.9 9.4 24.4 11.8
CR1/44-9 4.0 4 50 400 240 150 350 380 525 725 430 240 360 300
165 15.7 9.4 5.9 13.8 15 20.7 28.5 16.9 9.4 14.2 11.8
CR1/44-19 4.0 4 100 610 450 150 350 380 735 935 430 240 570 300
330 24 17.7 5.9 13.8 15 28.9 36.8 16.9 9.4 22.4 11.8
CR1/44-29 4.0 4 150 810 650 150 350 380 935 1135 430 240 770 300
500 31.9 26.5 5.9 13.8 15 36.8 44.7 16.9 9.4 30.3 11.8

※The specifications are subject to be changed without previous notice for improvement.
