Uses : Water,Fuel dispensing,Chemical transfer,Fire protection,etc.

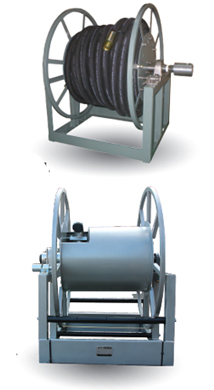

Design & Structure

  • Heavy duty steel construction reels designed for long lengths & large hose reel.
  • Supplied without handle,Rewind by wheel
  • Roller guides are option(Specify roller position when ordering.)
  • Brake system is Supplied with spring actuated pin lock as standard
  • Full flow shaft and swivel.
  • Standard inlet 90° balanced pressure swivel joint(NBR Packing)
  • Inlet & Outlet connection threads are female NPT
    (Other threads are available when you request)
  • All materials are carbon steel as standard
    (Stainless, Aluminum and other materials are available when you request)

Painting : Powder Coat.

Specification

Specification
Available Hose specifications Max Pressure Max Temperature Rewind Type Installation
Size(Inch) Hose Material Length(MR)
1 inch~3 inch Rubber(1W/B) 50MR~100MR 1450psi/100bar 212℉ (100℃) Manual Floor
160ft~300ft

All WD series reels are supplied without hose. Hose assemblies will be quoted according to your request.

Other specifications are available.

Hose Reel | Manual Rewind
크게보기

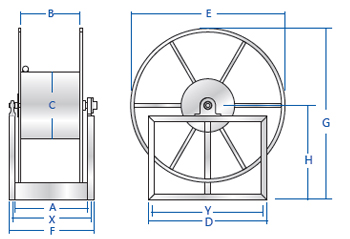

Specification
MODEL NO. HOSE CAPACITY REEL DIMENSIONS
I.D O.D LEN GTH A B C D E F G H X Y
mm inch mm inch meter
feet		 mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch
WD25-9 25
1		 35.6
1.4		 50
165		 620
24.4		 400
15.7		 250
9.8		 540
21.3		 600
23.6		 740
29.1		 650
25.6		 350
13.8		 580
22.8		 390
15.4
WD25-19 25
1		 35.6
1.4		 100
300		 820
32.3		 600
23.6		 250
9.8		 590
23.2		 650
25.6		 940
37		 700
27.6		 375
14.8		 780
30.7		 440
17.3
WD32-5 32
1-1/4		 43.9
1.7		 30
100		 590
23.2		 350
13.8		 300
11.8		 590
23.2		 650
25.6		 740
29.1		 700
27.6		 375
14.8		 550
21.7		 440
17.3
WD32-9 32
1-1/4		 43.9
1.7		 50
165		 840
33.1		 600
23.6		 300
11.8		 590
23.2		 650
25.6		 990
39		 700
27.6		 375
14.8		 800
31.5		 440
17.3
WD40-5 38
1-1/2		 50.8
2		 30
100		 640
25.2		 400
15.7		 300
11.8		 590
23.2		 650
25.6		 810
31.9		 700
27.6		 375
14.8		 600
23.6		 440
17.3
WD40-9 38
1-1/2		 50.8
2		 50
165		 940
37		 700
27.6		 300
11.8		 590
23.2		 650
25.6		 1110
43.7		 700
27.6		 375
14.8		 900
35.4		 440
17.3
WD50-5 50
2		 64.6
2.5		 30
100		 760
29.9		 500
19.7		 400
15.7		 700
27.6		 800
31.5		 960
37.8		 880
34.6		 480
18.9		 720
28.3		 500
19.7
WD50-9 50
2		 64.6
2.5		 50
165		 760
29.9		 500
19.7		 400
15.7		 900
35.4		 1000
39.4		 960
37.8		 1080
42.5		 580
22.8		 720
28.3		 700
27.6
WD75-5 75
3		 84.8
2.5		 30
100		 760
29.9		 500
19.7		 500
19.7		 1000
39.4		 1100
43.3		 980
38.6		 1180
46.5		 630
24.8		 720
28.3		 800
31.5
WD75-9 75
3		 84.8
2.5		 50
165		 760
29.9		 500
19.7		 500
19.7		 1250
49.2		 1350
53.1		 980
38.6		 1430
56.3		 755
29.7		 720
28.3		 1050
41.3

※The specifications are subject to be changed without previous notice for improvement.
