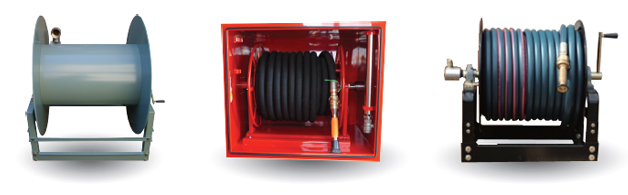

Manual Rewind (HD-Series) | Hose Reel

HOME > PRODUCTS > Manual Rewind (HD-Series)

Uses : Water,Fuel dispensing,Chemical transfer,Fire protection,etc.

Specification

Specification
Available Hose specifications			Max Pressure	Max Temperature	Rewind Type	Installation
Size(Inch)	Hose Material	Length(MR)	Max Pressure	Max Temperature	Rewind Type	Installation
3/8 inch~1-1/2 inch	Rubber(1W/B)	50MR~200MR	6000psi/410bar	212℉ (100℃)	Manual	Floor
3/8 inch~1-1/2 inch	Rubber(1W/B)	160ft~650ft	6000psi/410bar	212℉ (100℃)	Manual	Floor

Design & Structure

Heavy duty steel construction reels designed for long lengths of hose
Permanent direct crank rewind .
Roller guides are option(Specify roller position when ordering.)
Brake System:cam-lock drag brake or spring actuated pin lock(Supplied with spring actuated pin lock as standard)
Full flow shaft and swivel
Standard inlet 90° balanced pressure swivel joint(NBR Packing)
Inlet & Outlet connection threads are female NPT (Other threads are available when you request)
All materials are carbon steel as standard (Stainless, Aluminum and other materials are available when you request)

Painting : Powder Coat.

Type of Bevel Gear crank rewind is options(Pinion brake as standard)

All HD series reels are supplied without hose. Hose assemblies will be quoted according to your request.

Other specifications are available.

Specification

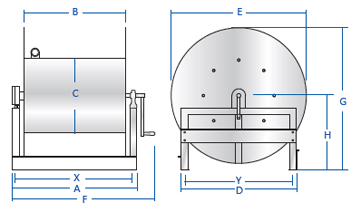

MODEL NO.	HOSE CAPACITY			REEL DIMENSIONS
	I.D	O.D	LEN GTH	A	B	C	D	E	F	G	H	X	Y
	mm inch	mm inch	meter feet	mm inch	mm inch	mm inch	mm inch	mm inch	mm inch	mm inch	mm inch	mm inch	mm inch
HD9-9	9.5 3/8	16.5 0.65	50 165	380 15	240 9.4	200 7.9	420 16.5	380 15	560 22	410 16.1	210 8.3	340 13.4	250 9.8
HD9-19	9.5 3/8	16.5 0.6	100 300	460 18.1	320 12.6	200 7.9	390 15.4	450 17.7	620 24.4	490 19.3	265 10.4	420 16.5	290 11.4
HD9-29	9.5 3/8	16.5 0.6	150 500	640 25.2	500 19.7	200 7.9	390 15.4	450 17.7	800 31.5	490 19.3	265 10.4	600 23.6	290 11.4
HD9-39	9.5 3/8	16.5 0.6	200 650	640 25.2	500 19.7	200 7.9	440 17.3	500 19.7	800 31.5	540 21.3	290 11.4	600 23.6	340 13.4
HD13-9	12.7 1/2	20.6 0.8	50 165	420 16.5	280 11	200 7.9	390 15.4	450 17.7	600 23.6	490 19.3	265 10.4	380 15	290 11.4
HD13-19	12.7 1/2	20.6 0.8	100 300	520 20.5	380 15	200 7.9	440 17.3	500 19.7	680 26.8	540 21.3	290 11.4	480 18.9	340 13.4
HD13-29	12.7 1/2	20.6 0.8	150 500	640 25.2	500 19.7	200 7.9	490 19.3	550 21.7	800 31.5	600 23.6	325 12.8	600 23.6	390 15.4
HD13-39	12.7 1/2	20.6 0.8	200 650	640 25.2	500 19.7	200 7.9	540 21.3	600 23.6	800 31.5	650 25.6	350 13.8	600 23.6	440 17.3
HD19-9	19 3/4	27.8 1.09	50 165	520 20.5	380 15	250 9.8	440 17.3	500 19.7	720 28.3	540 21.3	290 11.4	480 18.9	340 13.4
HD19-19	19 3/4	27.8 1.09	100 300	740 29.1	600 23.6	250 9.8	490 19.3	550 21.7	940 37	600 23.6	325 12.8	700 27.6	390 15.4
HD19-29	19 3/4	27.8 1.09	150 500	740 29.1	600 23.6	250 9.8	540 21.3	600 23.6	940 37	650 25.6	350 13.8	700 27.6	440 17.3
HD25-5	25 1	35.6 1.4	30 100	440 17.3	300 11.8	250 9.8	490 19.3	550 21.7	670 26.4	600 23.6	325 12.8	400 15.7	390 15.4
HD25-9	25 1	35.6 1.4	50 165	540 21.3	400 15.7	250 9.8	540 21.3	600 23.6	770 30.3	650 25.6	350 13.8	500 19.7	440 17.3
HD25-19	25 1	35.6 1.4	100 300	740 29.1	600 23.6	250 9.8	590 23.2	650 25.6	970 38.2	700 27.6	375 14.8	700 27.6	490 19.3
HD32-3	32 1-1/4	43.9 1.7	20 70	460 18.1	300 11.8	300 11.8	590 23.2	650 25.6	720 28.3	700 27.6	375 14.8	420 16.5	490 19.3
HD32-5	32 1-1/4	43.9 1.7	30 100	510 20.1	350 13.8	300 11.8	590 23.2	650 25.6	770 30.3	700 27.6	375 14.8	470 18.5	490 19.3
HD32-9	32 1-1/4	43.9 1.7	50 165	760 29.9	600 23.6	300 11.8	590 23.2	650 25.6	1020 40.2	700 27.6	375 14.8	720 28.3	490 19.3
HD40-3	38 1-1/2	50.8 2	20 70	510 20.1	350 13.8	300 11.8	590 23.2	650 25.6	790 31.1	700 27.6	375 14.8	470 18.5	490 19.3
HD40-5	38 1-1/2	50.8 2	30 100	560 22	400 15.7	300 11.8	590 23.2	650 25.6	840 33.1	700 27.6	375 14.8	520 20.5	490 19.3
HD40-9	38 1-1/2	50.8 2	50 165	860 33.9	700 27.6	300 11.8	590 23.2	650 25.6	1140 44.9	700 27.6	375 14.8	820 32.3	490 19.3

※The specifications are subject to be changed without previous notice for improvement.
