GR-HT Series | Gas Welding Reel

HOME > PRODUCTS > Gas Welding Reel (GR-HT Series)

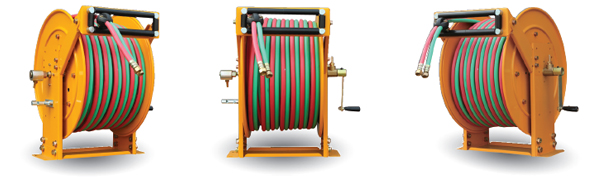

Gas Welding Reel | GR-HT-Series
크게보기

Uses : For oxygen/acetylene (Gas welding & cutting)

Specification

Specification
Available Hose specifications Max Pressure Max Temperature Rewind Type Installation
Size(Inch) Hose Material Length(MR)
3/16inch~5/16inch Rubber 15MR~50MR 145psi/10bar 122℉ (50℃) Manual Floor, Wall
50ft~160ft

Design & Structure

  • Lightweight steel construction , compact design and versatile usage.
  • HT Series designed for mobile and portable
  • Dual frame ,guide plate & ball bearing support.
  • Permanent direct crank rewind .
  • Roller guides are option(Specify roller position when ordering.)
  • Brake System:cam-lock drag brake or spring actuated pin lock(Supplied with spring actuated pin lock as standard)
  • Full flow shaft and swivel
  • Standard inlet 90° balanced pressure swivel joint(NBR Packing)
  • Right hand for oxygen(green color hose),left hand for acetylene(red color hose)
  • Inlet & Outlet connection threads are female NPT. (Other threads are available when you request)
  • All materials are carbon steel as standard (Stainless, Aluminum and other materials are available when you request)
  • Other specifications are available.

Painting : Powder Coat.

Gas Welding Reel | GR-HT-Series
크게보기
Specification

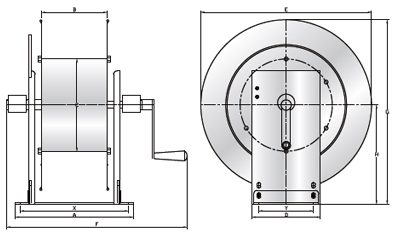

MODEL NO. HOSE CAPACITY REEL DIMENSIONS
I.D O.D LEN GTH A B C D E F G H X Y
mm inch mm inch meter
feet		 mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch
GR630HT 4.8
3/16		 11.6
0.4		 30
100		 300
11.8		 150
5.9		 200
7.9		 110
4.3		 380
15.0		 390
15.4		 410
16.1		 220
8.7		 260
10.2		 70
2.8
GR650HT 4.8
3/16		 11.6
0.4		 50
165		 300
11.8		 150
5.9		 200
7.9		 150
5.9		 450
17.7		 390
15.4		 490
19.3		 265
10.4		 260
10.2		 110
4.3
GR830HT 7.9
5/16		 15
1.5		 30
100		 300
11.8		 150
5.9		 200
7.9		 150
5.9		 450
17.7		 390
15.4		 490
19.3		 265
10.4		 260
10.2		 110
4.3
GR850HT 7.9
5/16		 15
1.5		 50
165		 390
15.4		 240
9.4		 200
7.9		 150
5.9		 450
17.7		 480
18.9		 490
19.3		 265
10.4		 350
13.8		 110
4.3

※The specifications are subject to be changed without previous notice for improvement.
