※ When order Power Rewind Type, Must choice Motor Type as below;

MD : ELECTRIC MOTOR REWIND
AMD : AIR MOROTR REWIND
HMD : HYDRAULIC MOTOR REWIND

For Fueling of Aviation

Specification
Available Hose specifications			Max Pressure	Max Temperature	Rewind Type	Installation
Size(Inch)	Hose Material	Length(MR)	Max Pressure	Max Temperature	Rewind Type	Installation
1,1/2 inch ~ 3 inch	NBR	15MR~30MR	600psi/40bar	212℉ (100℃)	Manual & Power Motor	Floor
1,1/2 inch ~ 3 inch	NBR	50ft~100ft	600psi/40bar	212℉ (100℃)	Manual & Power Motor	Floor

Design & Structure

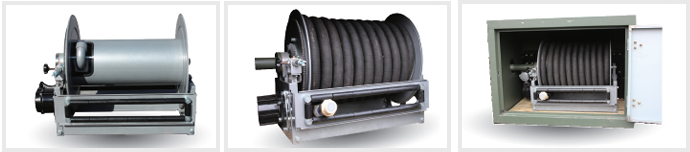

Drum type hose reel for Jet Refueler & Refueling Vehicle
Standard Rewinding Speed :20MR/min
Working Voltage : DC12V/24V(Available Change)
Motor is installed outside of the reel
Stable Rewinding hose by installed 4 way Guide roller. (Option)
Bevel Gear Type for Manual Handle
Explosion Proof Motor will be installed.
Series 6000 reels are supplied without hose. Hose assemblies will be quoted according to your request.
All reel materials are carbon steel as standard (But Fluid line applied SUS304 or Aluminium)
Other Specifications are available

Specification
MODEL. No	HOSE CAPACITY			REEL DIMENSIONS
	I.D	O.D	LENGTH	A	B	C	D	E	F	G	H	X	Y
	Ø inch	Ø inch	meter feet	mm inch	mm inch	mm inch	mm inch	mm inch	mm inch	mm inch	mm inch	mm inch	mm inch
S6040-2	38 1-1/2	54 2.1	15 49.2	490 19.3	450 17.7	300 11.8	480 18.9	580 22.8	670 26.4	680 27	390 15.4	430 16.9	380 15
S6040-3	38 1-1/2	54 2.1	20 66	590 23.2	550 21.7	300 11.8	480 18.9	580 22.8	770 30.3	680 27	390 15.4	530 20.9	380 15
S6040-4	38 1-1/2	54 2.1	25 82	690 27.2	650 25.6	300 11.8	480 18.9	580 22.8	870 34.2	680 27	390 15.4	630 24.8	380 15
S6040-5	38 1-1/2	54 2.1	30 98	790 31.1	750 29.5	300 11.8	520 20.4	580 22.8	1155 45.5	740 29.1	450 17.7	750 29.5	420 16.5
S6050-2	50 2	67 2.6	15 49.2	490 19.3	450 17.7	400 15.7	550 21.7	650 25.6	670 26.4	750 29.5	425 16.7	430 16.9	450 17.7
S6050-3	50 2	67 2.6	20 66	590 23.2	550 21.7	400 15.7	550 21.7	650 25.6	770 30.3	750 29.5	425 16.7	530 20.9	450 17.7
S6050-4	50 2	67 2.6	25 82	690 27.2	650 25.6	400 15.7	550 21.7	650 25.6	870 34.2	750 29.5	425 16.7	630 24.8	450 17.7
S6050-5	50 2	67 2.6	30 98	840 33.1	800 31.5	400 15.7	590 21.7	650 25.6	1230 48.4	870 34.3	545 21.5	800 31.5	490 19.3
S6065-2	65 2-1/2	83 3.3	15 49.2	460 18.1	400 15.7	500 19.7	900 35.4	1000 39.4	660 26	1130 44.5	630 24.8	400 15.7	800 31.5
S6065-3	65 2-1/2	83 3.3	20 66	510 20.1	450 17.7	500 19.7	900 35.4	1000 39.4	710 28	1130 44.5	630 24.8	450 17.7	800 31.5
S6065-4	65 2-1/2	83 3.3	25 82	560 22	500 19.7	500 19.7	900 35.4	1000 39.4	760 29.9	1130 44.5	630 24.8	500 19.7	800 31.5
S6065-5	65 2-1/2	83 3.3	30 98	660 26	600 23.6	500 19.7	900 35.4	1000 39.4	860 33.9	1130 44.5	630 24.8	600 23.6	800 31.5
S6075-2	75 3	96 3.8	15 49.2	510 20.1	450 17.7	500 19.7	900 35.4	1000 39.4	710 28	1130 44.5	630 24.8	450 17.7	800 31.5
S6075-3	75 3	96 3.8	20 66	610 24	550 21.7	500 19.7	900 35.4	1000 39.4	810 31.9	1130 44.5	630 24.8	550 21.7	800 31.5
S6075-4	75 3	96 3.8	25 82	760 29.9	700 27.6	500 19.7	900 35.4	1000 39.4	960 37.8	1130 44.5	630 24.8	700 27.6	800 31.5
S6075-5	75 3	96 3.8	30 98	860 33.9	800 31.5	500 19.7	900 35.4	1000 39.4	1275 50.2	1220 48	720 28.3	820 32.3	1200 47.2

※The specifications are subject to change without notice for improvement.
