Manual Rewind (LW-Series) | Hose Reel

HOME > PRODUCTS > Manual Rewind (LW-Series)

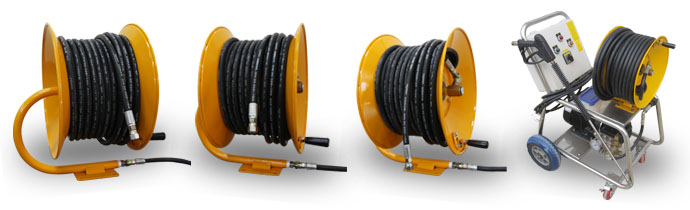

Hose Reel | Manual Rewind
크게보기

Uses : For Air,Water,and press wash.

Specification

Specification
Available Hose specifications Max Pressure Max Temperature Rewind Type Installation
Size(Inch) Hose Material Length(MR)
1/4inch~
3/8 inch		 PVC(1/TB) 10MR~30MR 2900psi/200bar 212℉ (100℃) Manual Floor, Wall
Rubber(1W/B) 30ft~100ft

Design & Structure
Hand Crank Air Hose Reel / Water Hose Reel and Pressure Wash Hose Reel

  • Lightweight steel construction , compact design.
  • Permanent direct crank rewind .
  • Full flow shaft and 3/8" swivel brass Joint.
  • Standard inlet 90° balanced pressure swivel joint(NBR Packing)
  • Inlet & Outlet connection threads are female NPT (Other threads are available when you request)
  • All materials are carbon steel as standard (Stainless, Aluminum and other materials are available when you request)
  • Mount reel to wall, workbench or vehicle with ease
  • HT series reels are supplied without hose,hose assemblies will be quoted as you requested.
  • Other specifications are available

Painting : Powder Coat.

Hose Reel | Manual Rewind
크게보기
Specification

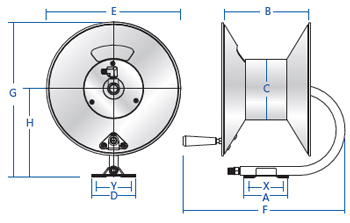

MODEL NO. HOSE CAPACITY REEL DIMENSIONS
I.D O.D LEN GTH A B C D E F G H X Y
mm inch mm inch meter
feet		 mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch
LW6-1 6.5
1/4		 13
0.5		 10
30		 108
4.3		 160
6.3		 150
5.9		 108
4.3		 330
13		 350
13.8		 385
15.2		 220
8.7		 88
3.5		 88
3.5
LW6-3 6.5
1/4		 13
0.5		 20
70		 108
4.3		 190
7.5		 150
5.9		 108
4.3		 330
13		 380
15		 385
15.2		 220
8.7		 88
3.5		 88
3.5
LW6-5 6.5
1/4		 13
0.5		 30
100		 108
4.3		 210
8.3		 150
5.9		 108
4.3		 330
13		 400
15.7		 385
15.2		 220
8.7		 88
3.5		 88
3.5
LW9-1 9.5
3/8		 16.5
0.6		 10
30		 108
4.3		 160
6.3		 150
5.9		 108
4.3		 330
13		 350
13.8		 385
15.2		 220
8.7		 88
3.5		 88
3.5
LW9-3 9.5
3/8		 16.5
0.6		 20
70		 108
4.3		 190
7.5		 150
5.9		 108
4.3		 330
13		 380
15		 385
15.2		 220
8.7		 88
3.5		 88
3.5
LW9-5 9.5
3/8		 16.5
0.6		 30
100		 108
4.3		 210
8.3		 150
5.9		 108
4.3		 330
13		 400
15.7		 385
15.2		 220
8.7		 88
3.5		 88
3.5

※The specifications are subject to be changed without previous notice for improvement.
