GR-ST Series | Gas Welding Reel

HOME > PRODUCTS > Gas Welding Reel (GR-ST Series)

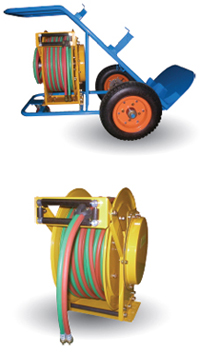

Gas Welding Reel | GR-ST-Series
크게보기

Uses : For oxygen/acetylene (Gas welding & cutting)

Design & Structure

  • Reels are all steel construction and compact design
  • All bolted assembly without weldings
  • Dual frame ,guide plate & ball bearing support.
  • Special heat-treatment spring & non-corrosive ratchet.
  • 4-way roller assembly.
  • Full flow shaft and swivel
  • Standard inlet 90° balanced pressure swivel joint(NBR Packing)
  • Right hand for oxygen(green color hose), left hand for acetylene(red color hose)
  • Inlet & Outlet connection threads are female NPT.
    (Other threads are available when you request)
  • All materials are carbon steel as standard
    (Stainless, Aluminum and other materials are available when you request)
  • Special heat-treatment spring & non-corrosive ratchet.
  • 4-way roller guide

Painting : Powder Coat.

Specification

Specification
Available Hose specifications Max Pressure Max Temperature Rewind Type Installation
Size(Inch) Hose Material Length(MR)
3/16inch~5/16inch Rubber 15MR~50MR 145psi/10bar 122℉ (50℃) Spring Floor, Wall
50ft~160ft

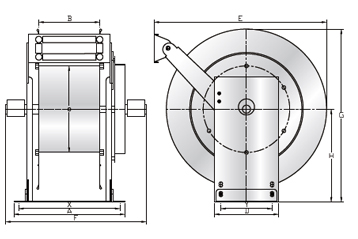

Gas Welding Reel | GR-ST-Series
크게보기
Specification
MODEL NO. HOSE CAPACITY REEL DIMENSIONS
I.D O.D LEN GTH A B C D E F G H X Y
mm inch mm inch meter
feet		 mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch
GR615ST 4.8
3/16		 11.6
0.4		 15
50		 270
10.6		 120
4.7		 200
7.9		 110
4.3		 350
13.8		 380
15.0		 380
15.0		 205
8.1		 230
9.1		 70
2.8
GR620ST 4.8
3/16		 11.6
0.4		 20
70		 270
10.6		 120
4.7		 200
7.9		 110
4.3		 380
15.0		 380
15.0		 410
16.1		 220
8.7		 230
9.1		 70
2.8
GR630ST 4.8
3/16		 11.6
0.4		 30
100		 270
10.6		 120
4.7		 250
9.8		 150
5.9		 450
17.7		 380
15.0		 480
18.9		 255
10.0		 230
9.1		 110
4.3
GR650ST 4.8
3/16		 11.6
0.4		 50
165		 270
10.6		 120
4.7		 280
11.0		 150
5.9		 550
21.7		 380
15.0		 580
22.8		 305
12.5		 230
9.1		 110
4.3
GR815ST 7.9
5/16		 15
0.5		 15
50		 270
10.6		 120
4.7		 200
7.9		 110
4.3		 380
15.0		 380
15.0		 410
16.1		 220
8.7		 230
9.1		 70
2.8
GR820ST 7.9
5/16		 15
0.5		 20
70		 300
11.8		 150
5.9		 200
7.9		 110
4.3		 380
15.0		 410
16.1		 410
16.1		 220
8.7		 260
10.2		 70
2.8
GR830ST 7.9
5/16		 15
0.5		 30
100		 300
11.8		 150
5.9		 200
7.9		 150
5.9		 450
17.7		 410
16.1		 490
19.3		 265
10.4		 260
10.2		 110
4.3
GR850ST 7.9
5/16		 15
0.5		 50
165		 300
11.8		 150
5.9		 280
11.0		 150
5.9		 550
21.7		 410
16.1		 600
23.6		 325
12.8		 260
10.2		 110
4.3

※The specifications are subject to be changed without previous notice for improvement.
