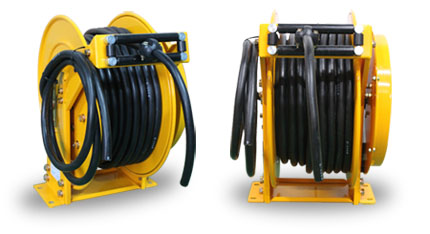

Spring Rewind (CT2-Series) | Cable Reel

HOME > PRODUCTS > Spring Rewind (CT2-Series)
Cable Reel | Spring Rewind
크게보기

Specification

Specification
Cable specifications Allowable Current Rewind Installation
Square Cable Material Core Length(MR)
6.0 ~ 10.0 PNCT 3 ~ 4 10MR~50MR 30A Spring Floor, Wall
30ft~165ft

Design & Structure

  • Reels are all steel construction and compact design
  • Dual frame, guide plate & ball bearing support.
  • Special heat-treatment spring & non-corrosive ratchet.
  • 3~4 conductor 50 amp/600 volt rated slip ring.
  • Brushes are copper graphite with copper alloy rings.
  • 4-way roller assembly.
  • All materials are carbon steel as standard (Stainless, Aluminum and other materials are available when you requested)
  • CT2 SERIES reels are furnished standard with PNCT Cable.
  • Other specifications are available.

Painting : Powder Coat.

APPLICATION

  • Power Tools
  • Bench Mount
  • Workshops
  • Light Source
  • Manufacturing Plants
  • Automotive & Fleet Service Centers
  • General Industrial
  • Facilities
  • Service / Mechanic / Utility Vehicles
Specification
MODEL NO. CABLE REEL DIMENSION
Size Number of Conduct Length A B C D E F G H X Y
sq core meter mm mm mm mm mm mm mm mm mm mm
feet inch inch inch inch inch inch inch inch inch inch
CT2/63-1 6 3 10 270 120 200 110 300 250 330 180 230 70
30 10.6 4.7 7.8 4.3 11.8 9.8 13.0 7.1 9.1 2.8
CT2/63-2 6 3 15 270 120 200 110 350 250 380 205 230 70
50 10.6 4.7 7.8 4.3 11.8 9.8 15.0 8.1 9.1 2.8
CT2/63-3 6 3 20 270 120 200 110 380 250 410 220 230 70
70 10.6 4.7 7.8 4.3 15.0 9.8 16.1 8.7 9.1 2.8
CT2/63-4 6 3 25 270 120 200 150 450 250 490 265 230 110
80 10.6 4.7 7.8 5.9 17.7 9.8 19.3 10.4 9.1 4.3
CT2/63-5 6 3 30 270 120 200 150 450 250 490 265 230 110
100 10.6 4.7 7.8 5.9 15.0 9.8 19.3 10.4 9.1 4.3
CT2/64-1 6 4 10 270 120 150 110 350 250 380 205 230 70
30 10.6 4.7 5.9 4.3 11.8 9.8 15.0 8.1 9.1 2.8
CT2/64-2 6 4 15 270 120 150 110 380 250 410 220 230 70
50 10.6 4.7 5.9 4.3 15.0 9.8 16.1 8.7 9.1 2.8
CT2/64-3 6 4 20 270 120 200 150 450 250 490 265 230 110
70 10.6 4.7 7.8 5.9 13.8 9.8 19.3 10.4 9.1 4.3
CT2/64-4 6 4 25 270 120 200 150 450 250 490 265 230 110
80 10.6 4.7 7.8 5.9 17.7 9.8 19.3 10.4 9.1 4.3
CT2/64-5 6 4 30 270 120 200 150 450 250 490 265 230 110
100 10.6 4.7 7.8 5.9 17.7 9.8 19.3 10.4 9.1 4.3
CT2/103-1 10 3 10 270 120 150 110 350 250 380 205 230 70
30 10.6 4.7 5.9 4.3 11.8 9.8 15.0 8.1 9.1 2.8
CT2/103-2 10 3 15 270 120 150 110 380 250 410 220 230 70
50 10.6 4.7 5.9 4.3 15.0 9.8 13.0 8.7 9.1 2.8
CT2/103-3 10 3 20 270 120 150 110 380 250 410 265 230 70
70 10.6 4.7 5.9 4.3 15.0 9.8 16.1 10.4 9.1 2.8
CT2/103-4 10 3 25 270 120 200 150 450 250 490 265 230 110
80 10.6 4.7 7.8 5.9 17.7 9.8 19.3 10.4 9.1 4.3
CT2/103-5 10 3 30 270 120 200 150 450 250 490 256 230 110
100 10.6 4.7 7.8 5.9 17.7 9.8 19.3 10.4 9.1 4.3
CT2/104-1 10 4 10 270 120 150 110 350 250 380 205 230 70
30 10.6 4.3 5.9 4.3 11.8 9.8 15.0 8.1 9.1 2.8
CT2/104-2 10 4 15 270 120 150 110 380 250 410 220 230 70
50 10.6 4.7 5.9 4.3 15.0 9.8 16.1 8.7 9.1 2.8
CT2/104-3 10 4 20 270 120 200 150 450 250 490 265 230 110
70 10.6 4.7 7.8 5.9 17.7 9.8 19.3 10.4 9.1 4.3
CT2/104-4 10 4 25 270 120 200 150 450 250 490 265 230 110
80 10.6 4.7 7.8 5.9 17.7 9.8 19.3 10.4 9.1 4.3
CT2/104-5 10 4 30 270 120 200 150 500 250 540 290 230 110
100 10.6 4.7 7.8 5.9 19.7 9.8 21.3 11.4 9.1 4.3

※The specifications are subject to be changed without previous notice for improvement.
