Manual & Power rewind Reel
(SR3000 Series) | Storage Reels

HOME > PRODUCTS > Storage Reels (SR3000 Series)

Specification

  • SR3000 Series are non-contacting cable reel for AUDIO & VIDEO
  • Distinguished 3 Type of SR30C, SR30R, SR30T by INLET connect type
  • Excellent Rewind capacity by powerful DC Motor. DC Motor is installed inside of the reel
  • Safety cover on the chain gear is installed to prevent safety accident.
  • Provide detachable handle basically

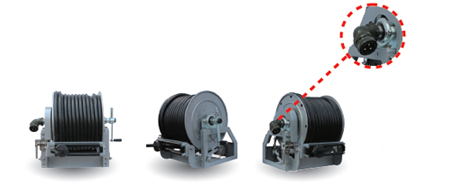

SR30C

Storage Reels | Manual & Power rewind Reel
크게보기
  • Attach connector of elbow type at axis of shaft
  • Compact type by connector located outside
  • No connector broken problem

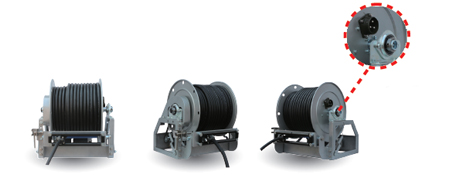

SR30R

Storage Reels | Manual & Power rewind Reel
크게보기
  • Connector fixed type at right or left side of drum inside

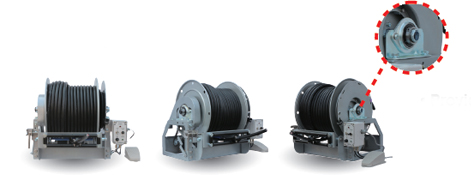

SR30T

Storage Reels | Manual & Power rewind Reel
크게보기
  • Provide spare drum for Store INLET CABLE
Specification
Model No. Reel Dimension
(W×D×H)mm		 Rewind Length by Cable capacity Rewind Type
O.D ø21 O.D ø16 O.D ø10 O.D ø 8
SR 30C 560×450×480 50MR 80MR 220MR 350MR Power Rewind
SR 30R 560×450×480 50MR 80MR 220MR 350MR Power Rewind
SR 30T 630×450×480 50MR 80MR 220MR 350MR Power Rewind

※ The Specifications are subject to change without notice for improvement
